MNR-8シリーズ
Upper/Lower limit detection of torque/angle, control of
fastening speed, and setting of erroneous torque detection
values at startup are available.
The smallest and most light-weight nutrunner in the industry.
The mounting of an ultra-compact transducer assures high-precision fastening.
  • Features

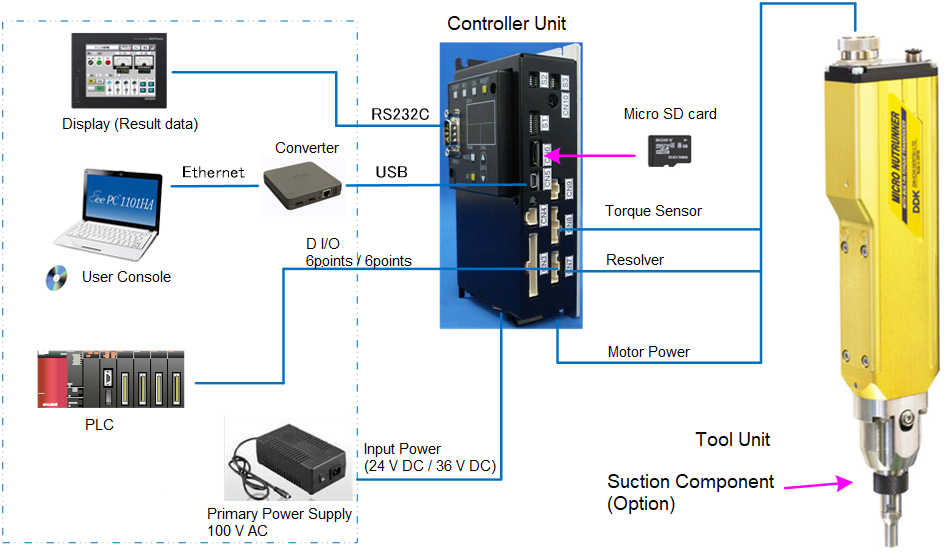

  • System Configuration
  • Tool Specification
  • Controller Specification
・
Simple and compact design to save space.
・
High-precision control realized by use of a high-speed CPU
・
Torque, angle OK/NG judgement function equipped as a standard feature in the compact body
・
Designated PC software stores fastening data, assisting quality control and traceability
・
A design consciously built for a clean environment
・
Interlock via external I/O signals available


Tool Model Max Torque
（Nm）

Max Speed（rpm）

24V DC

Max Speed(rpm)

36V DC

 Weight
（g)

Overall

(mm)

Drive Size

[mm]
MFT-080M10-S 0.8 1100 - 560 218.5 Hex 6.35
MFT-080M10-S1 0.8 1100 1660 660 215.5 Hex 6.35
MFT-240M10-S 2.4 400 600 680 215.5 Hex 6.35



Controller Model MNR-8
Fastening Method Torque/Angle method
Parameter 8
PLC I/O Input：6  Output：6
Communicasion I/F

USB：[User Console] conect

RS232C：Result data output
Memory Card

Micro SD card（MAX 2G Bytes）
Input Voltage 24-36 V DC
Power Consumption 108 W
